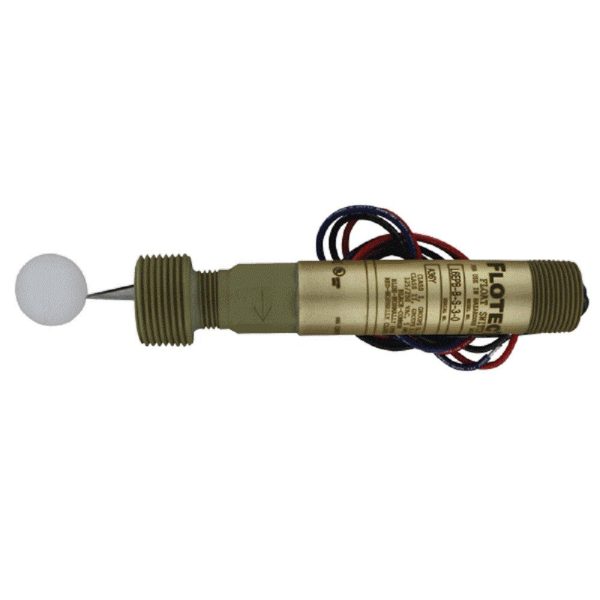

The SERIES L6 Flotect® Float Switches is a rugged and reliable float switch which operates automatically to indicate tank level. It is offered with a 303 SS or brass body with spherical or cylindrical float options.

Approvals:
• ATEX, CE, CSA, IECEx, KTL, UL.

Features:
Compact design is built for years of trouble-free service
• Simple and dependable operation with no mechanical linkage
• Float lever pivoted within the body moves when the process liquid displaces the float and magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing
• Leak proof lower body machined from bar stock
• Side wall or direct tee mounting options available to act as an external float chamber
• Weatherproof and explosion-proof body for demanding outdoor applications
• Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
• Sensitive to level changes of less than 1/2˝ (12 mm)

Applications:
Direct pump control for maintaining level
• Automatic tank dump operations
• Level control
• Valve control
• Level alarm in sumps, scrubber systems, hydro-pneumatic tanks, boilers, and water/ wastewater treatment processes

Specifications:

Service:	Liquids compatible with wetted materials.
Wetted Materials:	Float: Solid polypropylene or 304 SS; Lower Body: Brass or 303 SS;
Temperature Limits:	-4 to 220°F (-20 to 105°C) Standard, MT high temperature option 400°F (205°C)(MT not UL, CSA, ATEX, IECEx and KC). ATEX compliant AT, IECEx IEC and KC option ambient temp
Pressure Limits:	See model chart.
Enclosure Rating:	IP68.
Switch Type:	SPDT snap switch standard, DPDT snap switch optional
Electrical Rating:	125/250 VAC (V~)
Shipping Weight:	Enclosure: 5.43 oz (154 g); Cable: 0.77 oz (21.27 g) per ft.
Agency Approvals:	See model chart.
