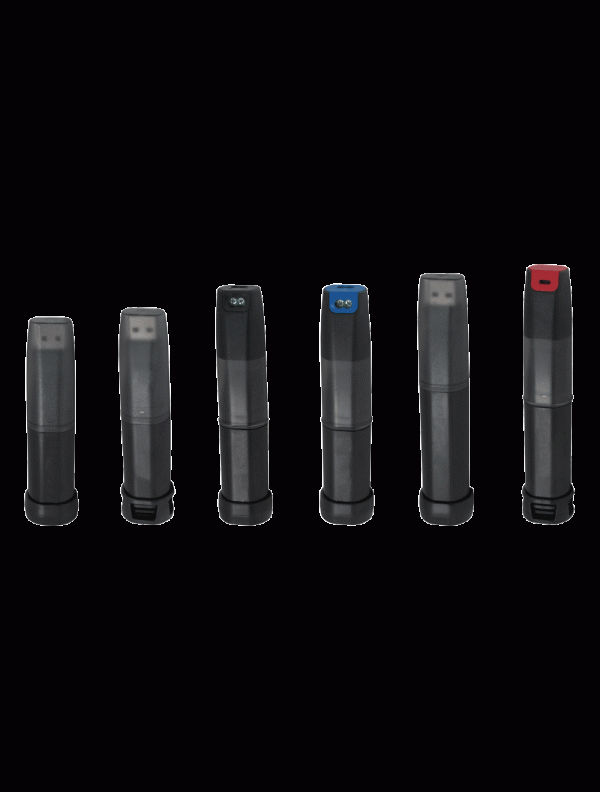

Series DW-USB Compact USB Data Logger
Measure Temperature, Humidity, Dew Point, Current, Voltage, or Carbon Monoxide
Manufacturer: Dwyer
SKU: DW-USB
MPN: DW-USB
List Price: 200.000 VND
Today's Price: 100.000 VND
| Memory Size: | 16,382 temperature; 16,382 each temperature and RH; 32,764 readings for voltage, current, and thermocouple; and 32,510 for carbon monoxide. |
| Sampling Mode: | Stop on memory full. |
| Sampling Rate: | Selectable from 10 s to 12 hr (temperature and RH models); 1 s to 12 hr (voltage, current, and thermocouple models); 10 s to 5 m (CO models). |
| Computer Requirements: | Windows® 2000/XP/7/8. |
| Power Requirements: | 3.6 V 1/2 AA lithium metal battery, included, user replaceable. |
| Housing: | ABS plastic blend. |
| Alarms: | Programmable high/low. |
| Interface: | USB Port. |
| Weight: | 1.5 oz (43 g). |
| Agency Approvals: | CE. |
