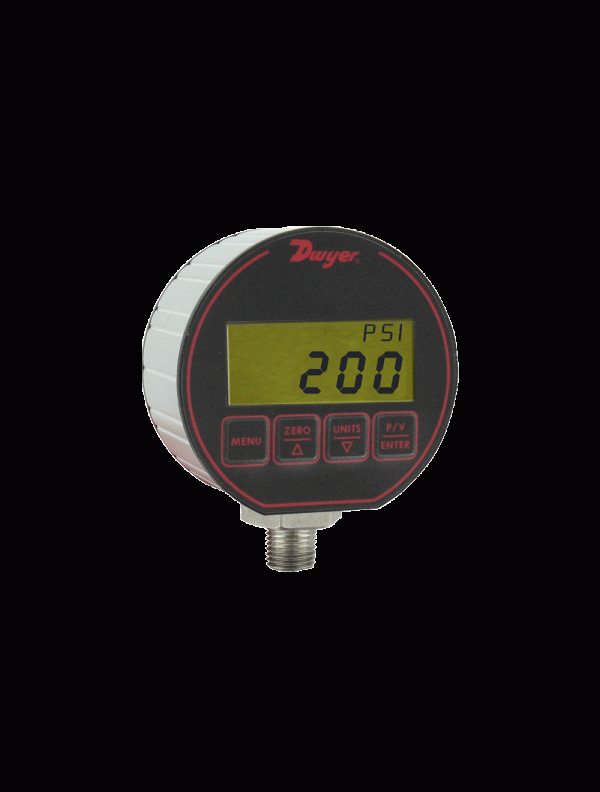

The SERIES DPG-200 Digital Pressure Gage has a precise ±0.25% full-scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. The DPG-200 is packaged in a durable extruded aluminum case designed to meet NEMA 4X (IP66). The unit is powered by 12 to 24 VDC/VAC and contains two alarm set points along with a 4-20 mA process output. A four-button keypad allows easy access to features. These features include backlight, peak and valley, auto zero and conversion of the pressure units. Pressure ranges also in mbar, kg/cm2, oz/in2, in Hg, mm Hg, ft w.c. and ft sw for various models.

Approvals:

Features:
• High accuracy provides exceptional measurement minimizing costly out of specification conditions
• Backlit 4-digit display provides clear parallax-free reading reducing potential for errors
• Durable aluminum case to meet NEMA 4X (IP66) requirements supports use in harsh or outdoor environments
Push-button zero reduce installation and service time

Applications:
• Level Control
• Pump Control
• Process Control
• Compressor Control

Specifications:

Service:	Liquids and non-combustible compatible gases
Wetted Materials:	316L SS.
Accuracy:	0.25% FS ±1 least significant digit (includes linearity, hysteresis,repeatability).
Pressure Limit:	2x pressure range for models ≤ 1000 psi; 5000 psi for 3000 psirange; 7500 psi for 5000 psi range.
Temperature Limits:	0 to 158°F (0 to 70°C).
Process Connection:	1/4˝ male NPT.
Display:	4 digit (.425˝ H x .234˝ W digits).
Size:	3.00˝ OD x 1.90˝ deep (not including cables).
Weight:	8.84 oz (275 g).
Switch Type:	2 SPDT form C contacts.
Electrical Rating:	0.5 A @ 125 VAC resistive, 1 A @ 24 VDC.
Relay Differential:	1 least significant digit.
Electrical Connections:	3 ft (.91 m) cable.
Mounting Orientation:	Mount in any position.
