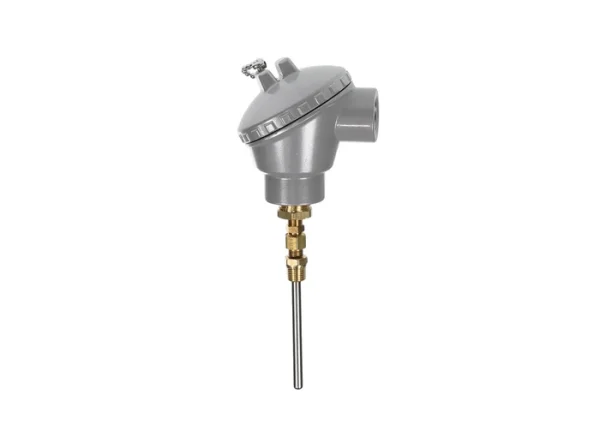

Series TTW Weatherproof Immersion Temperature Transmitter
Pt100 RTD, PC Programmable Transmitter
Manufacturer: Dwyer
SKU: TTW
MPN: TTW
List Price: 200.000 VND
Today's Price: 100.000 VND
| TEMPERATURE SENSOR | |
| Accuracy: | ±3°F (±1.7°C). |
| Temperature Limits: | Operating: -40 to 302°F (-40 to 150°C). |
| Sensor Curves: | Pt100 RTD (TE Series Curve D). |
| TEMPERATURE TRANSMITTER | |
| Input Range: | -328 to 986°F (-200 to 530°C). |
| Output: | Two-wire 4 to 20 mA. |
| Output Impedance: | 600 Ω @ 24 VDC. |
| Power Requirements: | 12 to 35 VDC. |
| Accuracy: | ±0.2% FS. |
| Temperature Limits: | -40 to 185°F (-40 to 85°C). |
| Response Time: | <100 ms. |
| ENCLOSURE | |
| Temperature Limits: | -40 to 212°F (-40 to 100°C). |
| Rating: | NEMA 4X (IP65). |
| Material: | Painted aluminum housing. |
Integral LCD Display, LED Status Indication
