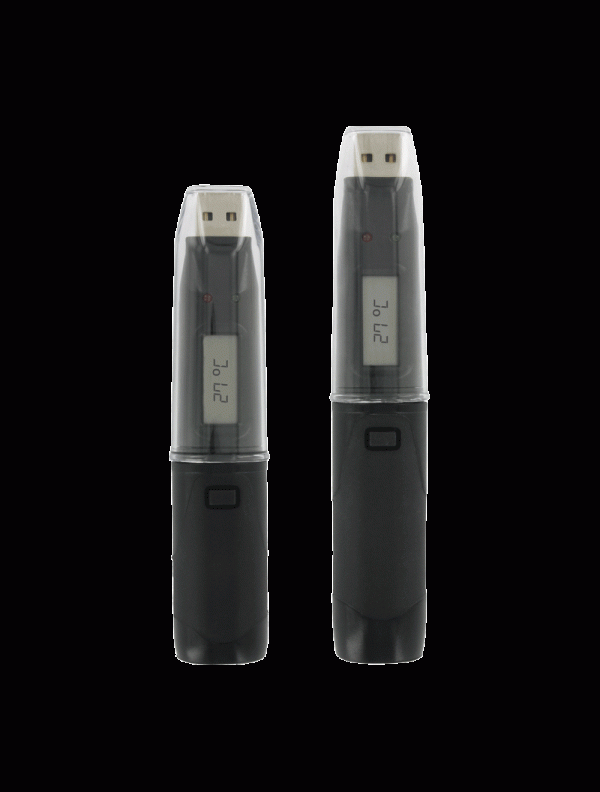

Series DW-USB-LCD Compact USB Data Logger with Display

Giảm giá!

Integral LCD Display, LED Status Indication

Manufacturer: Dwyer

SKU: DW-USB-LCD

MPN: DW-USB-LCD

List Price: ~~200.000 VND~~

Today's Price: 100.000 VND

Product Details

The SERIES DW-USB Compact USB Data Logger allows users to monitor temperature, humidity, dew point, voltage, current, or carbon monoxide almost anywhere, and then download stored data by simply plugging the module directly into a PC’s USB port. The compact housing can resist moisture up to IP67 when the protective cap is attached, and has built in LED’s to indicate an alarm has been met or the battery is low. Using the included Windows® based software, users can set the sampling rate, start time, high/low alarms, and temperature unit.

Approvals:
• CE Approval
• Reduction of Hazardous Substance (RoHS)
Applications:
• Calibration labs
• Environmental chambers
• Pharmaceutical plants
• Storage warehouses
Features:
• Meets IP67 standards when the protective cap is fitted
• All in one unit plugs into PC with no cable required
• LED status indicators for visual confirmation• Optional integral LCD display for local indication
Specifications:

Range:	DW-USB-2-LCD: Temperature: -31 to 176° F (-35 to 80°C), Humidity: 0 to 100% RH; DW-USB-2-HA-LCD: Temperature: -31 to 176° F (-35 to 80°C), Humidity: 0 to 100% RH; DW-USB-6-LCD: K-type: -328 to 2372°F (-200 to 1300°C), J-type: -202 to 1652°F (-130 to 900°C), T-type: -328 to 662°F (-200 to 350°C).
Accuracy:	DW-USB-2-LCD: Temperature ±1°F (±0.5°C) Humidity ±3.0%; DW-USB-2-HA-LCD: Temperature ±0.6°F (±0.3°C), Humidity ±2.0%; DW-USB-6-LCD: ±2°F (±1°C).
Resolution:	Temperature: 1°F (0.5°C); Humidity: 0.5% RH.
Memory Size:	Thermocouple models: 32510 readings; Temperature/humidity models: 16382 readings.
Sampling Mode:	Continuous with data rollover.
Sampling Rate:	Selectable from 10 seconds to 12 hours for temperature/humidity models; 1 second to 12 hours for thermocouple models.
Display:	2.5 digit LCD.
Computer Requirements:	Windows® 2000, Windows® XP, Windows® 7, Windows VISTA® 32-bit or 64-bit operating systems.
Power Requirements:	3.6 V 1/2 AA lithium metal battery, included, user replaceable.
Housing:	ABS plastic blend.
Alarms:	Programmable high/low.
Interface:	USB port.
Weight:	Temperature/humidity models 1.6 oz (45.4 g); Thermocouple models 1.8 oz (51 g).
Agency Approvals:	CE, RoHS.
